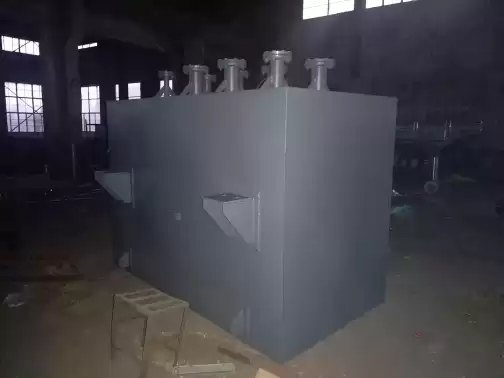

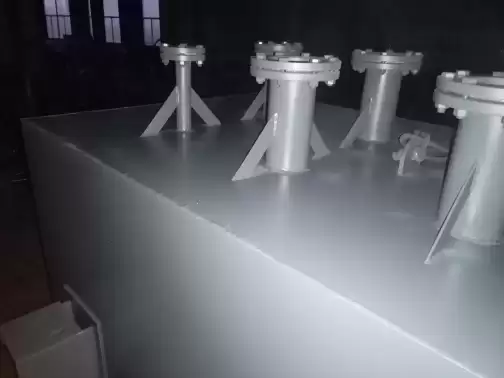

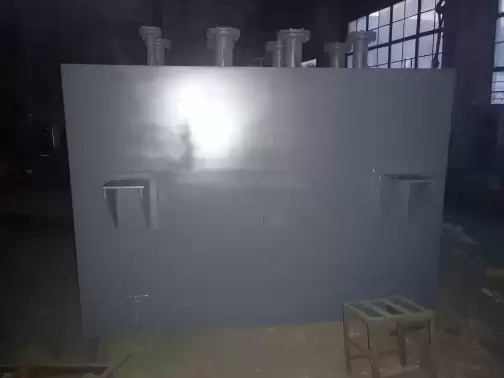

Overview of combined fan muffler:

The combination type fan muffler (combination type composite muffler) mainly has a small hole type muffler inserted inside the fan muffler to achieve the desired effect, and the combination mode can be selected as needed. Welcome - Customers come to design and manufacture, or contact us to help you design. Please refer to the reference diagram for details.

Fan noise and analysis:

The fan generates strong noise during operation, which affects the environment. It is mainly manifested as aerodynamic noise, mechanical noise, and noise from matched motors. Its aerodynamic noise is the main factor. Aerodynamic noise mainly includes rotational noise and eddy current noise.

Rotating noise refers to the uneven velocity and pressure of the circumferential airflow at the blade outlet of a bladed fan when the impeller rotates, resulting in pressure pulsation between the volute and forming noise. The larger the non-uniformity, the stronger the noise. Meanwhile, due to the presence of the wind tongue, the pressure pulsation of the wind tongue - in turn affects the blades of the impeller, forming two types of noise. These noises are all caused by the rotation of the impeller.

Eddy current noise is caused by the vortex generated by the surrounding gas when the impeller rotates at high speed. Due to the effect of air viscosity, the vortex splits into a series of small vortices, causing disturbance and noise in the air.

The aerodynamic noise of a fan radiates strong noise to the outside world through an open fan inlet or outlet.

Our company can design and manufacture fan silencers based on user noise reduction requirements, noise intensity, frequency spectrum, and resistance loss- Generally, a silencer is used, in the form of a plate or tube, and the shape can be square or circular. Noise reduction - up to 40 dB (A).

1. Compilation of models for combined fan silencers

The combination type fan muffler does not have a fixed model and specification, and can be produced according to customer needs.

2. Ordering Notice (As this muffler is a non-standard product, please provide the following working conditions and requirements when placing an order)

A. Fan - high air volume

B. Fan interface size, number of interfaces

C. Installation position of fan muffler: such as fan inlet, outlet, or air duct

D. Connection method: welding, flange

E. Do you need to equip it with an expansion joint

3. Installation, use, storage, and maintenance of silencers

Silencer installation and use - please read the 银行卡Installation and Use Manual银行卡 in detail.

4. Supply

Overall factory delivery (except for special requirements).

5. Factory documentation

A. Qualified-

B. General drawing

C. Installation and Use Manual
